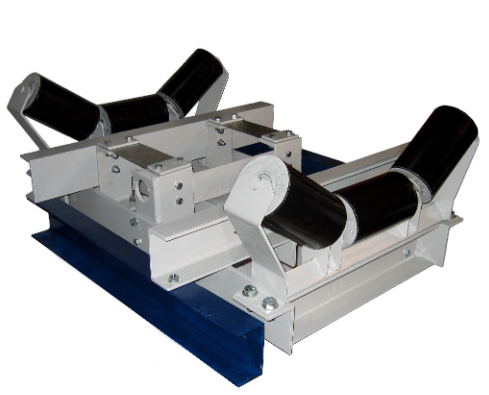

Modular Multi-Idler Belt weigher model MBD
Highly accurate modular multi-idler belt weigher with dual and four-idler configurations. Designed for continuous flow measurement with modular flexibility for a wide range of belt widths.
Features
- Highly accurate and proven rugged design (±0.25–0.5%)
Fully floating weigh carriage for simple calibration
- Cost-effective modular construction
Dual and four idler configurations for different belt widths
- Integrated test weight receptors or optional lever-arm stored test weights
Optional friction jockey wheel for return belt
- IP65 stainless steel load cells and junction box for durability
Applications
- Continuous measurement of material flow rates
Monitoring throughput, consumption, and production rates
- Accountability of stored and retrieved material
Maximum or minimum load limit alarms
- Batching and loading station control
Pre-feeder regulation
Construction:
Fully floating weighing platform for precise measurement
- Overload-protected stainless steel load cells (IP65)
- IP65 cable junction box (painted mild steel or optional 316 stainless steel)
IP65 tail drum speed sensor
- Mounting and adjustment bolts
Optional weigh-quality idler sets for ±0.2 mm alignment
- Operating Principle: Load cells measure the load on the conveyor section while a speed transducer acquires belt speed. The controller calculates both instantaneous load and totalized flow.
Longer weigh lengths reduce errors from conveyor dynamics
- Wide belts with large side forces are accommodated with modular multi-idler design
- Modules can be run in tandem or parallel for flexibility across applications
- Modular design results in lighter construction while maintaining precision
Specifications
- Belt widths: 500–2500 mm depending on model
Accuracy: ±0.25%–0.5% depending on model
- Single module (dual idler) and multi-module (four idler) configurations
Standard idler spacings: 1000, 1250 & 1500 mm
- Fully modular for easy integration with new or existing conveyors
Custom Designs
- Available for non-standard stringers, idler spacing, and belt widths
Accuracy confirmed via formal quotation
- Installation should follow operating and installation manuals
