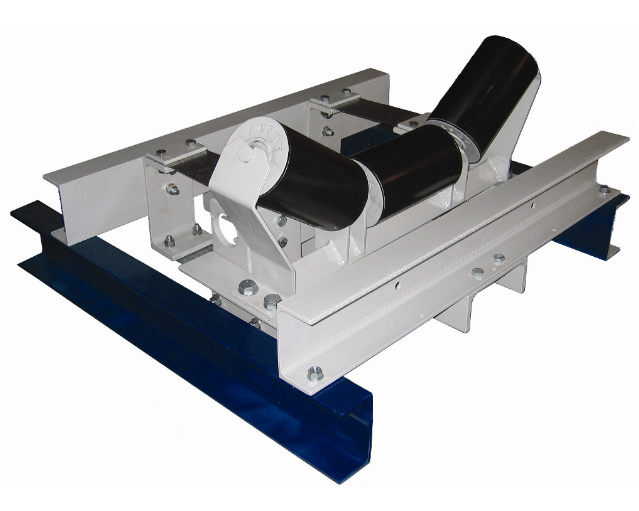

Modular Single Idler Belt weigher model MBS
Modular single idler belt weigher with highly accurate, proven, and rugged design. Flexible for a wide range of belt widths with simple calibration and modular construction.
Features
- Highly accurate, proven, and rugged design (±1%)
Fully floating weigh carriage for easy calibration
- Cost-effective modular design
Dual load cell configuration for belts >1600 mm
- Integrated test weight receptors or optional lever-arm stored test weights
Optional friction jockey wheel for return belt
- IP65 stainless steel load cells and junction box for durability
Applications
- Continuous measurement of material flow rates
Monitoring throughput, consumption, and production rates
- Accountability of received and shipped material
Maximum or minimum load limit alarms
- Batching and loading station control
Pre-feeder regulation
Construction:
Fully floating weighing platform for precise measurement
- Overload-protected stainless steel load cells (IP65)
- IP65 cable junction box (painted mild steel or optional 316 stainless steel)
IP65 tail drum speed sensor
- Mounting and adjustment bolts
Optional weigh-quality idler sets for ±0.2 mm alignment
- Operating Principle: Load cells measure the weight on the conveyor section while a speed transducer acquires belt speed. The controller calculates both instantaneous load and totalized flow.
- Single centrally mounted load cell with spring flexure for belts <1500 mm
- Dual flexure assemblies with load cells for wider belts to manage side forces
- Modular design reduces overall weight while maintaining accuracy
Specifications
- Belt widths: 500–2500 mm depending on model
Accuracy: ±1% (subject to installation)
- Fully modular for easy integration with new or existing conveyors
Standard models
- MBS.1 series: single load cell, belts 500–1500 mm
MBS.2 series: dual load cell, belts 1600–2500 mm
Custom Designs:
- Available for non-standard stringers, idler spacing, and belt widths
Accuracy confirmed via formal quotation
- Installation should follow operating and installation manuals
