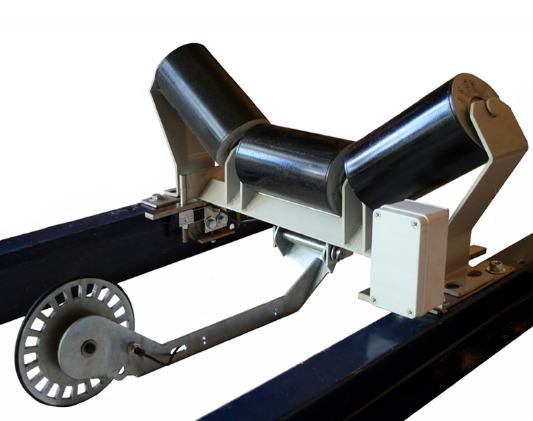

Single idler belt scale Model MBSX
Highly reliable single idler belt scale for continuous measurement of material flow. Accurate, easy to install, and suitable for both new and existing conveyors.
Features
- Simple installation with all mounting hardware included
Accurate and reliable design (±1%)
- Stainless steel double-ended shear beam load cell
Optional jockey wheel speed sensor for return belt
- Junction box with spring-loaded push-in terminals
Zinc-plated surface finish for durability
Applications:
Continuous measurement of production rates
- Monitoring received and shipped material amounts
Maximum or minimum load limit alarms
- Batching and loading station control
Pre-feeder regulation
Construction:
- Fully floating weighing platform for accurate load measurement
IP56 stainless steel shear beam load cells
- IP65 ABS plastic cable junction box (optional 316 stainless steel)
IP65 tail drum speed sensor
- Mounting and adjustment bolts
- Optional weigh-quality idler sets for precise alignment (±0.2mm)
Optional friction jockey wheel on return belt
- Operating Principle: The belt scale measures the load on the weighed section of the conveyor via load cells, while a speed transducer tracks belt speed. The controller calculates both instantaneous load and totalized material flow. Modular design ensures lighter construction while maintaining accuracy.
Specifications
- Belt widths: 300–1200 mm
Accuracy: ±1% (subject to installation)
- Idler troughing angle: 20–35°
Belt speed: 0.1–3 m/s
- Idler base angle: 50×50 to 90×90 mm
Available Models
- MBSX.100 – 100 kg capacity
MBSX.200 – 200 kg capacity
- MBSX.400 – 400 kg capacity
